Aluminum Glass Railing System – Top-Mount Base Shoe – overview

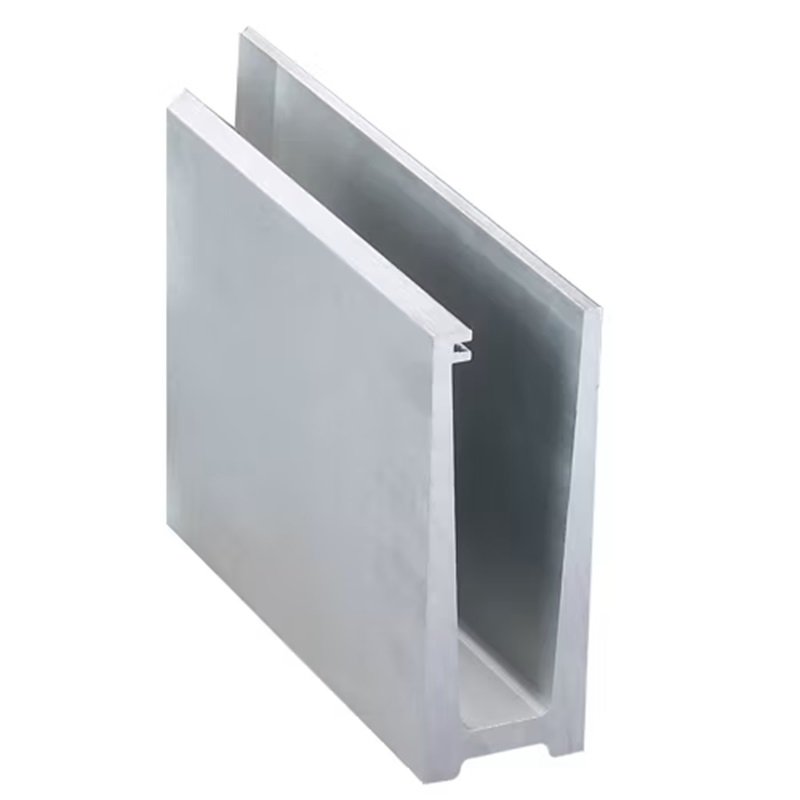

The Aluminum Glass Railing System – Top-Mount Base Shoe (MOD 0600) is a 121 mm aluminum base shoe profile that is fixed on top of the floor and clamps frameless glass panels along their bottom edge. Together with corners, end caps and the glazing kit it forms a complete aluminum glass railing system without posts.
MOD 0600 is listed on page 9 of the UNIKIM 2024 catalogue with the external corner MOD 0601, the internal corner MOD 0602, the end cap MOD 0603 and the glazing kits MOD 0800 / 0900. For fixing to the slab edge see the Aluminum U Channel Profile, Side-Mount (MOD 0610).
Specifications
| Model | MOD 0600 (catalogue p. 9) |
| Mounting | Top-mount (on the floor) |
| Profile size | 121 mm high × 45 mm wide (catalogue drawing) |
| Fixing holes | Ø14 mm, 171.43 mm centres, 50 mm from the ends (drawing) |
| Lengths | 2,500 mm (A6.0600.00.S) or 5,000 mm (A6.0600.50.S) |
| Glass | 12–21.52 mm laminated or toughened glass with the matching glazing kit |
| Material | Aluminium profile (Art. No. prefix A6), brushed (S) finish |
Profile, corners and accessories
| Art. No. | Part |
|---|---|
| A6.0600.00.S | Profile, 2,500 mm |
| A6.0600.50.S | Profile, 5,000 mm |

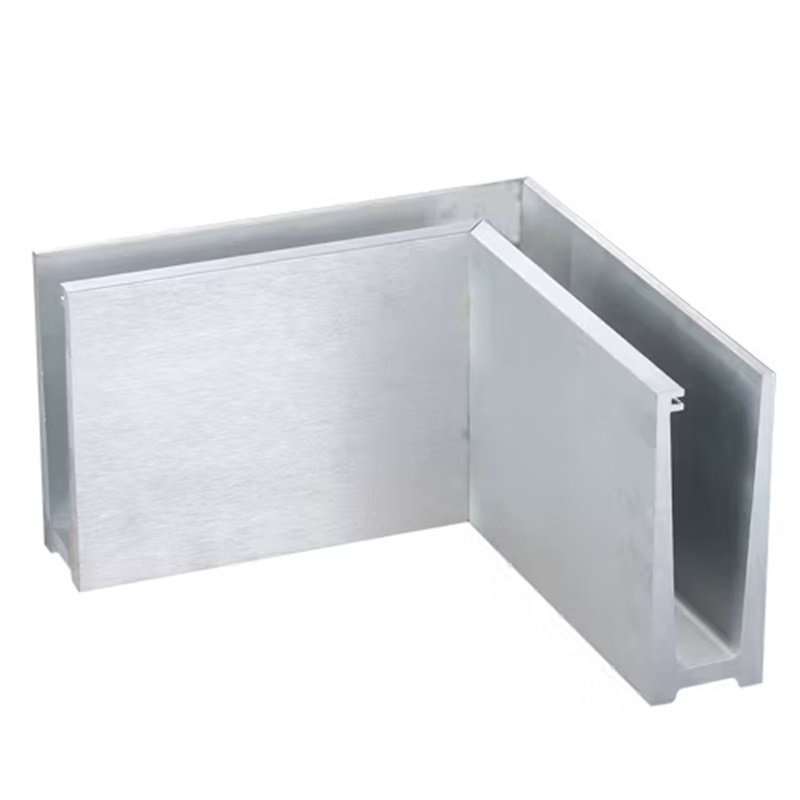

| A6.0601.00.S | External corner 90° – Base Shoe External Corner 90° (MOD 0601) |
| A6.0602.00.S | Internal corner 90° – Base Shoe Internal Corner 90° (MOD 0602) |
| A2.0603.00.S | End cap – Base Shoe End Cap (MOD 0603) |
| A0.0800.xx.R / A0.0900.xx.R | Glazing kit for 2.5 m / 5 m – Frameless Glass Balustrade Glazing Kit (MOD 0800 / 0900) |
Applications
Frameless glass balconies, terraces and roof decks; pool fences; stair landings, mezzanines and atria in offices, hotels and shopping centres; any project where the glass must stand on the floor without posts.
Installation notes
- Fix the profile to a level, load-bearing structure with anchors suited to the base (concrete, steel or timber) – the structural engineer sets the anchor type.
- Insert the setting blocks, stand the glass in the channel and lock it with the wedges and gaskets of the glazing kit MOD 0800 / 0900.
- Order the kit for your exact glass build-up (12 to 21.52 mm).
- Panel size, glass type and loads must be checked against your local building rules.
Which parts do I need?
For a straight run: profile + end caps + glazing kit. For an L-shaped run add one external corner Base Shoe External Corner 90° (MOD 0601) or internal corner Base Shoe Internal Corner 90° (MOD 0602). Tell us the run lengths and glass build-up and we prepare the full parts list.
Why order from UNIKIM
We manufacture railing hardware in our own factory in Ningbo and supply distributors, contractors and fabricators worldwide. Profiles, corners, end caps and glazing kits can be ordered together in one shipment, with OEM packing on request. Browse the full range of aluminum base shoe profiles.
Related products
- Base Shoe External Corner 90° (MOD 0601)
- Base Shoe Internal Corner 90° (MOD 0602)
- Base Shoe End Cap (MOD 0603)
- Frameless Glass Balustrade Glazing Kit (MOD 0800 / 0900)
FAQ
What is an aluminum glass railing system?
A railing where frameless glass panels are clamped in an aluminium base shoe profile instead of being held by posts. MOD 0600 is the top-mount profile of the UNIKIM system.
Which glass thickness can I use?
12 to 21.52 mm laminated or toughened glass, with the glazing kit for your exact build-up (for example A0.0800.17.R for 16.76 mm).
How long are the profiles?
2,500 mm and 5,000 mm. They can be cut on site; finish the ends with the end cap MOD 0603.
Are corners available?

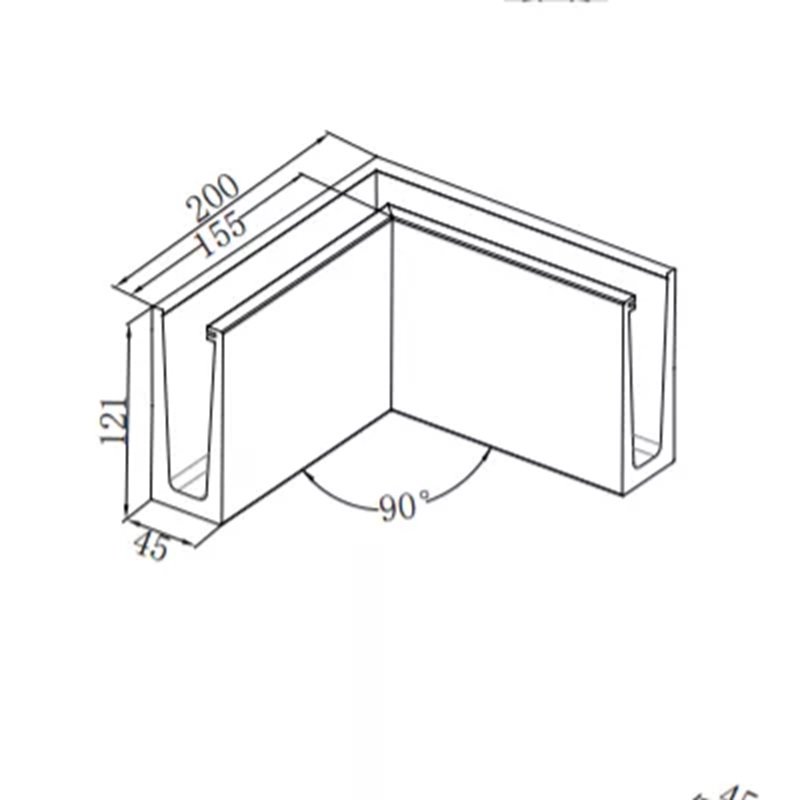

Yes – 90° external corner MOD 0601 and 90° internal corner MOD 0602, both 121 mm high like the profile.
Need a price? Request a quotation with the model number, length or quantity, and your glass build-up.
