Frameless Glass Balustrade Glazing Kit – overview

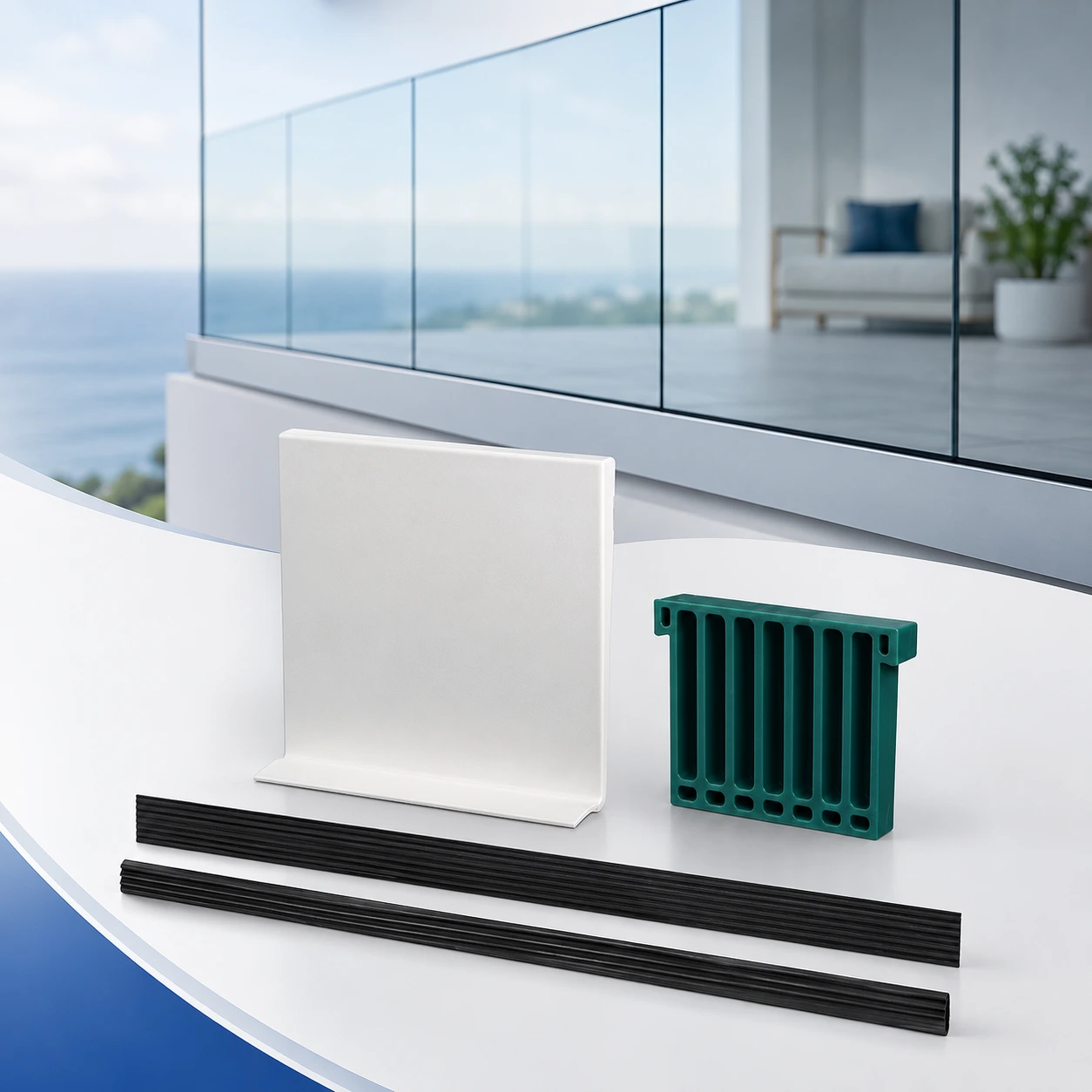

The Frameless Glass Balustrade Glazing Kit is the set of parts that holds the glass inside a UNIKIM aluminum base shoe profile. Setting blocks carry the glass, clamping wedges press it tight in the channel and gasket strips close the gaps at the top – no adhesive or cement is needed.
The kit is listed on pages 9 and 11 of the UNIKIM 2024 catalogue in two sizes: MOD 0800 for 2.5 m of profile and MOD 0900 for 5 m. Each is made for one glass thickness, from 12 to 21.52 mm.
Specifications
| Models | MOD 0800 (for 2,500 mm profile) and MOD 0900 (for 5,000 mm profile) |
| Contents MOD 0800 | 10 setting blocks, 10 clamping wedges, 2 gasket strips (2.5 m) – catalogue drawing |
| Contents MOD 0900 | 20 setting blocks, 20 clamping wedges, gasket strips for 5 m – catalogue drawing |
| Glass thickness | 12, 12.76, 13.52, 15, 16.76, 17.52, 19, 20.76, 21.52 mm |
| Fits | Top-mount profile MOD 0600 and side-mount profile MOD 0610 |
| Material | Plastic setting blocks and wedges, rubber gaskets |
Article numbers by glass thickness
| Glass thickness (mm) | Kit for 2.5 m | Kit for 5 m |
|---|---|---|
| 12 | A0.0800.12.R | A0.0900.12.R |
| 12.76 | A0.0800.13.R | A0.0900.13.R |
| 13.52 | A0.0800.14.R | A0.0900.14.R |
| 15 | A0.0800.15.R | A0.0900.15.R |
| 16.76 | A0.0800.17.R | A0.0900.17.R |
| 17.52 | A0.0800.18.R | A0.0900.18.R |
| 19 | A0.0800.19.R | A0.0900.19.R |
| 20.76 | A0.0800.21.R | A0.0900.21.R |
| 21.52 | A0.0800.22.R | A0.0900.22.R |
Applications
Glazing frameless glass balustrades in UNIKIM base shoe and U-channel profiles on balconies, terraces, stairs, mezzanines and pool fences; replacement kits when glass panels are changed.
Installation notes
- Place the setting blocks in the channel at the spacing shown in the installation guide.
- Stand the glass on the blocks, align it, then drive the wedges in from both sides.
- Press the gasket strips into the gap at the top of the channel.
- Use only the kit made for your exact glass thickness.
MOD 0800 or MOD 0900?
Order one MOD 0800 per 2.5 m profile or one MOD 0900 per 5 m profile, in the article number for your glass thickness – for example A0.0900.17.R for 16.76 mm laminated glass in a 5 m profile.
Why order from UNIKIM
We manufacture railing hardware in our own factory in Ningbo and supply distributors, contractors and fabricators worldwide. Profiles, corners, end caps and glazing kits can be ordered together in one shipment, with OEM packing on request. Browse the full range of aluminum base shoe profiles.
Related products
- Aluminum Glass Railing System – Top-Mount Base Shoe (MOD 0600)
- Aluminum U Channel Profile, Side-Mount (MOD 0610)
- Base Shoe External Corner 90° (MOD 0601)
- U Channel External Corner 90° (MOD 0611)
FAQ
What is a frameless glass balustrade kit?
The set of setting blocks, wedges and gaskets that holds the glass in an aluminium base shoe, so the balustrade needs no posts and no cement.
Which glass thickness does it fit?
Nine sizes from 12 to 21.52 mm: 12, 12.76, 13.52, 15, 16.76, 17.52, 19, 20.76 and 21.52 mm.
How many kits do I need?
One MOD 0800 per 2.5 m of profile, or one MOD 0900 per 5 m of profile.
Does it fit both UNIKIM profiles?
Yes – the top-mount base shoe MOD 0600 and the side-mount U-channel MOD 0610.
Need a price? Request a quotation with the model number, length or quantity, and your glass build-up.
