Gold D-Shape Glass Clamp, 304/316 Stainless Steel – overview

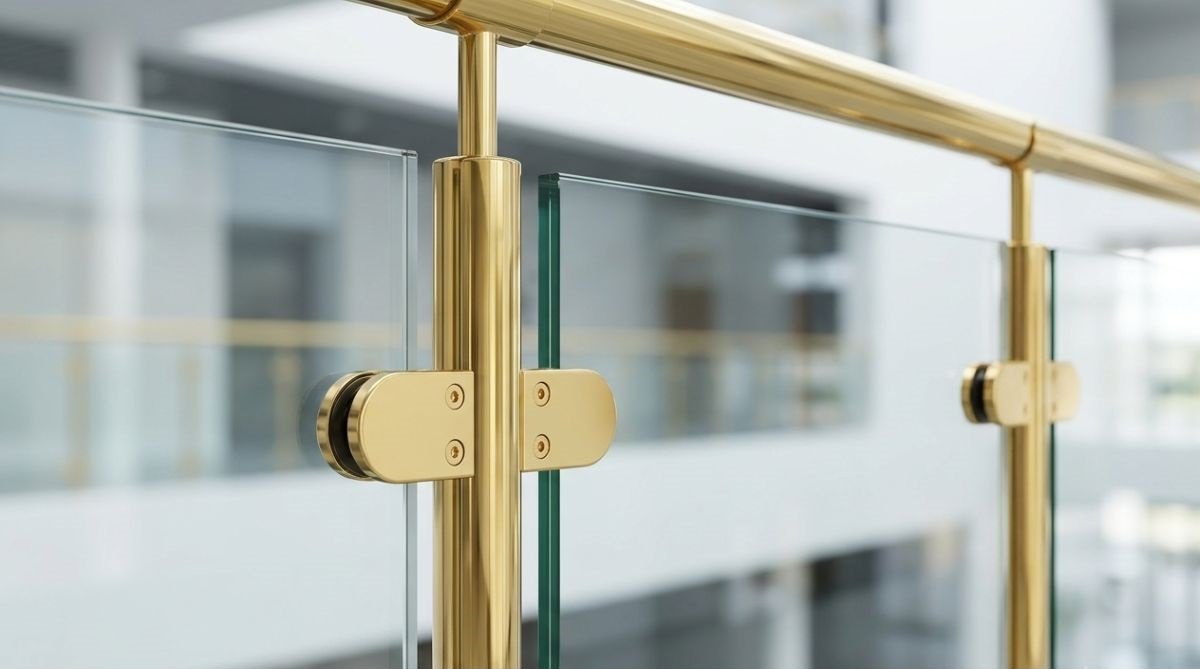

The Gold D-Shape Glass Clamp is a gold glass clamp for glass balustrades. It is the UNIKIM D-shape (half-round) clamp in AISI 304 or 316 stainless steel with a gold-colour finish, chosen for hotels, shops and homes where the railing hardware is part of the design.
The clamp fixes a glass panel to a post, a wall or a round handrail tube with rubber inserts, so the glass does not need to be drilled. Tell us the clamp size and glass thickness and we confirm the gold finish for that model.
UNIKIM makes it in its own factory in Ningbo, China, in AISI 304 for dry indoor areas or AISI 316 for humid, pool and coastal locations. See 304 vs 316 stainless steel if you are not sure which grade to choose.
Specifications
| Shape | D-shape (half-round) |
| Finish | Gold colour (as shown); brushed, polished, black and white also available |
| Sizes | 40 × 27 mm (MOD 2013), 50 × 40 mm (MOD 2010), 63 × 45 mm (MOD 2011 / 2012) |
| Glass thickness | By size – see the table below |
| Mounting | Flat back, or curved back for Ø33.7–50.8 mm tubes |
| Material | AISI 304 (A2) / AISI 316 (A4) stainless steel |
Versions and article numbers
| D-shape size | Model | Glass (catalogue) |
|---|---|---|
| 40 × 27 mm | MOD 2013 | 6, 6.76 mm |
| 50 × 40 mm | MOD 2010 | 6–10 mm single, 6.76–10.76 mm laminated |
| 63 × 45 mm | MOD 2012 | 6–10 mm single, 6.76–10.76 mm laminated |
| 63 × 45 mm | MOD 2011 | 6–12 mm single, 6.76–12.76 mm laminated |
Gold is a special finish: please confirm availability and minimum quantity for your size when you ask for a quote.
Applications
Glass balustrades on stairs, landings and galleries in hotels, restaurants, shops and luxury homes; projects with brass, gold or champagne-coloured fittings; interior glass screens.
Installation notes
- Glass panel height in the catalogue test set-up: 800–1,000 mm; minimum panel width 500 mm.
- Gap from handrail to top of glass, and from floor to bottom of glass: 10–50 mm (up to 120 mm with edge protection).
- Fit the clamps 100–150 mm from the top and bottom edges of the panel.
- Use the rubber insert that matches your exact glass thickness – see glass clamp rubber inserts.
Which size do I need?
Choose by glass thickness: 40 × 27 mm for thin 6–6.76 mm glass, 50 × 40 mm for glass up to 10.76 mm, and 63 × 45 mm for glass up to 12.76 mm. The same clamps in stainless steel are the D-Shape Glass Clamp 50×40 mm and the Outdoor D-Shape Glass Clamp 63×45 mm.
Why order from UNIKIM
We manufacture railing hardware in our own factory in Ningbo and supply distributors, contractors and fabricators worldwide. OEM logos, custom finishes and mixed orders of matching clamps, posts and handrail fittings are available. Browse the full range of glass clamps.
Related products
- D-Shape Glass Clamp 50×40 mm
- Outdoor D-Shape Glass Clamp 63×45 mm
- Black Square Glass Clamp 70×55 mm
- Round Glass Clamp Ø60 mm, Double-Sided
FAQ
What is a gold glass clamp?
A glass clamp with a gold-colour surface finish. This one is the UNIKIM D-shape clamp in AISI 304 or 316 stainless steel.
Which glass thickness does it fit?
From 6 mm up to 12.76 mm laminated glass, depending on the clamp size you choose (40 × 27, 50 × 40 or 63 × 45 mm).
Is the gold finish suitable outdoors?
Use AISI 316 as the base material outdoors and ask us about the finish for your exposure – we recommend gold mainly for interiors.
Can I get other colours?
Yes – brushed, polished, matte black and white are standard finishes; see the Black Square Glass Clamp 70×55 mm for a black version.
Need a price? Request a quotation with the model number, quantity, grade and finish.
