Glass Clamp Rubber Inserts for 6–17.52 mm Glass – overview

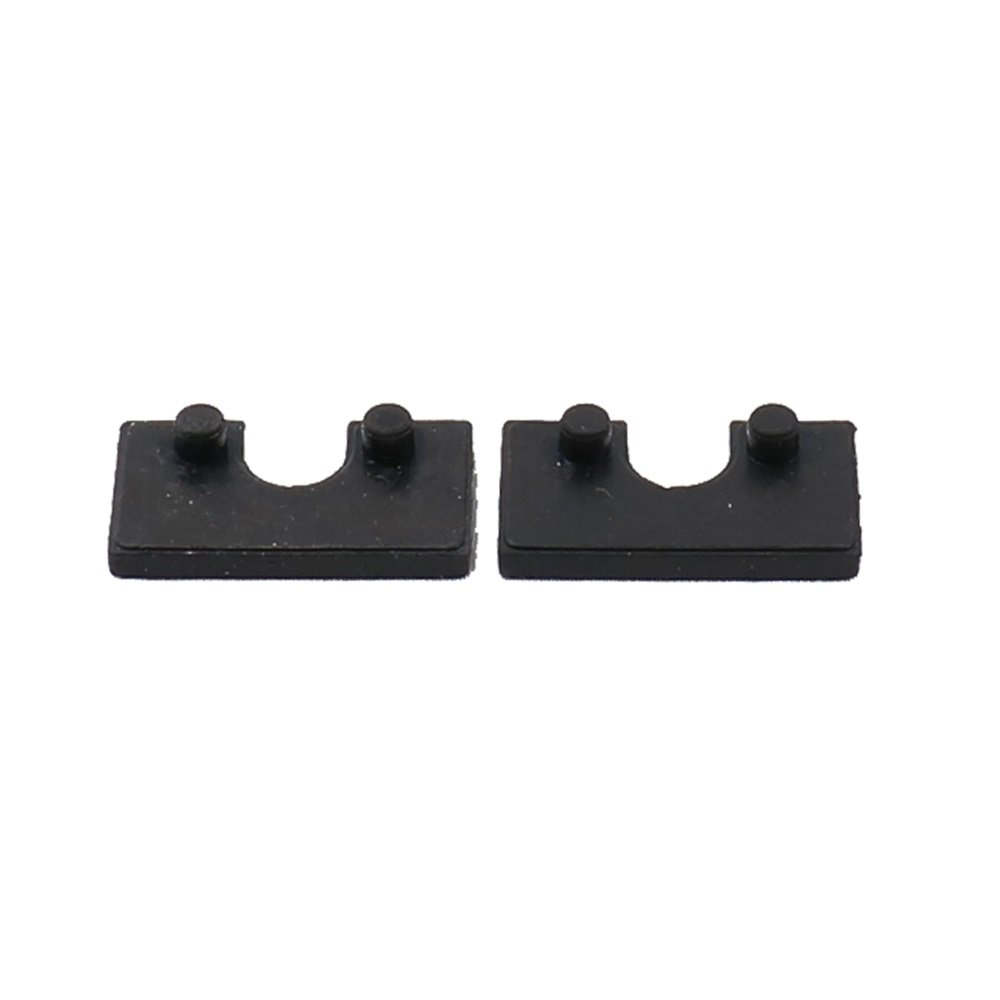

Glass clamp rubber inserts sit between the clamp body and the glass. They hold the panel firmly, stop metal touching the glass and take up small tolerances. Each insert is made for one clamp model and one glass thickness.
The UNIKIM 2024 catalogue (page 47) lists inserts for glass clamps MOD 2010–2031, 2050 and 2051, for glass from 6 mm single to 17.52 mm laminated. Worn inserts on older clamps, sometimes called rubber blanket clamp inserts, can be replaced with the matching set.
Specifications
| Item No. format | A9.[clamp model].[thickness code].R |
| Glass thickness | 6 to 17.52 mm, depending on clamp model |
| Fits | UNIKIM glass clamps MOD 2010, 2011, 2012, 2013, 2021, 2022, 2023, 2024, 2025, 2026, 2030, 2031, 2050, 2051 |
| Material | Rubber |
| Supply | With new clamps or as spare parts |
Versions and article numbers
| Clamp | Glass thickness (mm) | Art. No. |
|---|---|---|
| MOD 2010 | 6, 6.76, 8, 8.76, 10, 10.76 | A9.2010.06.R – .11.R |
| MOD 2011 | 6, 6.76, 8, 8.76, 10, 10.76, 12, 12.76 | A9.2011.06.R – .13.R |
| MOD 2012 | 8, 8.76, 10, 10.76, 12, 12.76 | A9.2012.08.R – .13.R |
| MOD 2013 | 6, 6.76 | A9.2013.06.R – .07.R |
| MOD 2021 | 6, 6.76, 8, 8.76, 10, 10.76 | A9.2021.06.R – .11.R |
| MOD 2025 | 6, 6.76, 8, 8.76, 10, 10.76 | A9.2025.06.R – .11.R |
| MOD 2022 | 8, 8.76, 10, 10.76, 12, 12.76 | A9.2022.08.R – .13.R |
| MOD 2023 | 8, 8.76, 10, 10.76, 12, 12.76 | A9.2023.08.R – .13.R |
| MOD 2024 | 10, 10.76, 12, 12.76, 16.76*, 17.52 | A9.2024.10.R – .18.R |
| MOD 2026 | 8, 8.76, 10, 10.76, 12, 12.76 | A9.2026.08.R – .13.R |
| MOD 2030 | 6, 6.76, 8, 8.76, 10, 10.76, 12, 12.76 | A9.2030.06.R – .13.R |
| MOD 2031 | 8, 8.76, 10, 10.76, 12, 12.76 | A9.2031.08.R – .13.R |
| MOD 2050 | 6, 6.76, 8, 8.76, 10, 10.76 | A9.2050.06.R – .11.R |
| MOD 2051 | 6, 6.76, 8, 8.76, 10, 10.76 | A9.2051.06.R – .11.R |
* The catalogue insert table lists 16.76 mm for MOD 2024, while the clamp table lists 15.76 mm. Tell us your exact glass build-up and we will confirm.
Applications
Replacement inserts for existing UNIKIM clamps during maintenance; spare inserts for installers and distributors; changing glass thickness on an existing project, for example from 10 mm to 10.76 mm laminated glass.
How to choose the right insert
Match two things: the clamp model (for example MOD 2022) and the exact glass thickness, including the interlayer for laminated glass (for example 10.76 mm). The thickness code in the article number is: 06 = 6 mm, 07 = 6.76, 08 = 8, 09 = 8.76, 10 = 10, 11 = 10.76, 12 = 12, 13 = 12.76, 18 = 17.52 mm.
Why order from UNIKIM
We manufacture railing hardware in our own factory in Ningbo and supply distributors, contractors and fabricators worldwide. OEM logos, custom finishes and mixed orders of matching clamps, posts and handrail fittings are available. Browse the full range of glass clamps.
Related products
- Square Glass Clamp 45×45 mm
- Square Glass Clamp 55×55 mm
- Heavy Duty Square Glass Clamp 70×55 mm
- Round Glass Clamp Ø60 mm, Double-Sided
FAQ
What are glass clamp rubber inserts for?
They grip the glass inside the clamp, protect the glass edge from the metal and stop the panel from slipping.
How do I choose the right insert?
Use the clamp model and the exact glass thickness. Example: A9.2022.11.R is the insert for MOD 2022 and 10.76 mm laminated glass.
Can I order inserts separately?
Yes, as replacements or spares for existing UNIKIM clamps, or together with new clamps.
Do you have inserts for 17.52 mm glass?
Yes, for the heavy duty clamp MOD 2024: A9.2024.18.R.
