Black Square Glass Clamp 70×55 mm for 10–17.52 mm Glass – overview
The Black Square Glass Clamp 70×55 mm (MOD 2024, finish B) is the largest square glass clamp in the UNIKIM range in a matte black finish. It holds thick single glass (10–12 mm) and laminated glass up to 17.52 mm to a post, wall or round handrail tube.
A black square glass clamp suits modern projects with dark handrails, posts and window frames. The catalogue lists MOD 2024 for indoor use and, with a security pin, for outdoor use (pages 39–41 and 44). The same clamp in brushed stainless steel is the Heavy Duty Square Glass Clamp 70×55 mm.
UNIKIM makes it in its own factory in Ningbo, China, in AISI 304 for dry indoor areas or AISI 316 for humid, pool and coastal locations. See 304 vs 316 stainless steel if you are not sure which grade to choose.
Specifications
| Model | MOD 2024, finish B = black (catalogue p. 39–41, 44) |
| Size | 70 × 55 mm |
| Single glass (mono) | 10, 12 mm |
| Laminated glass (VSG) | 10.76, 12.76, 15.76, 17.52 mm |
| Glass panel width | 500–1,600 mm, depending on glass type and wind load |
| Mounting | Flat back, or curved back for Ø33.7, 38.1, 42.4, 48.3, 50.8 mm tubes (outdoor table: flat, 48.3 and 50.8 mm) |
| Material | AISI 304 (A2) / AISI 316 (A4) stainless steel |
| Finish | Matte black (B); also brushed, polished, white, raw |
| Use | Indoor; outdoor with security pin |
Versions and article numbers
| Art. No. (AISI 304) | Back / mounting |
|---|---|
| A2.2024.00.B | Flat – walls, flat or square posts |
| A2.2024.33.B | Round tube Ø33.7 mm |
| A2.2024.38.B | Round tube Ø38.1 mm |
| A2.2024.42.B | Round tube Ø42.4 mm |
| A2.2024.48.B | Round tube Ø48.3 mm |
| A2.2024.50.B | Round tube Ø50.8 mm |
For AISI 316 replace A2 with A4. For the finish replace the last letter: S brushed, M polished, B black, W white, R raw.
Applications

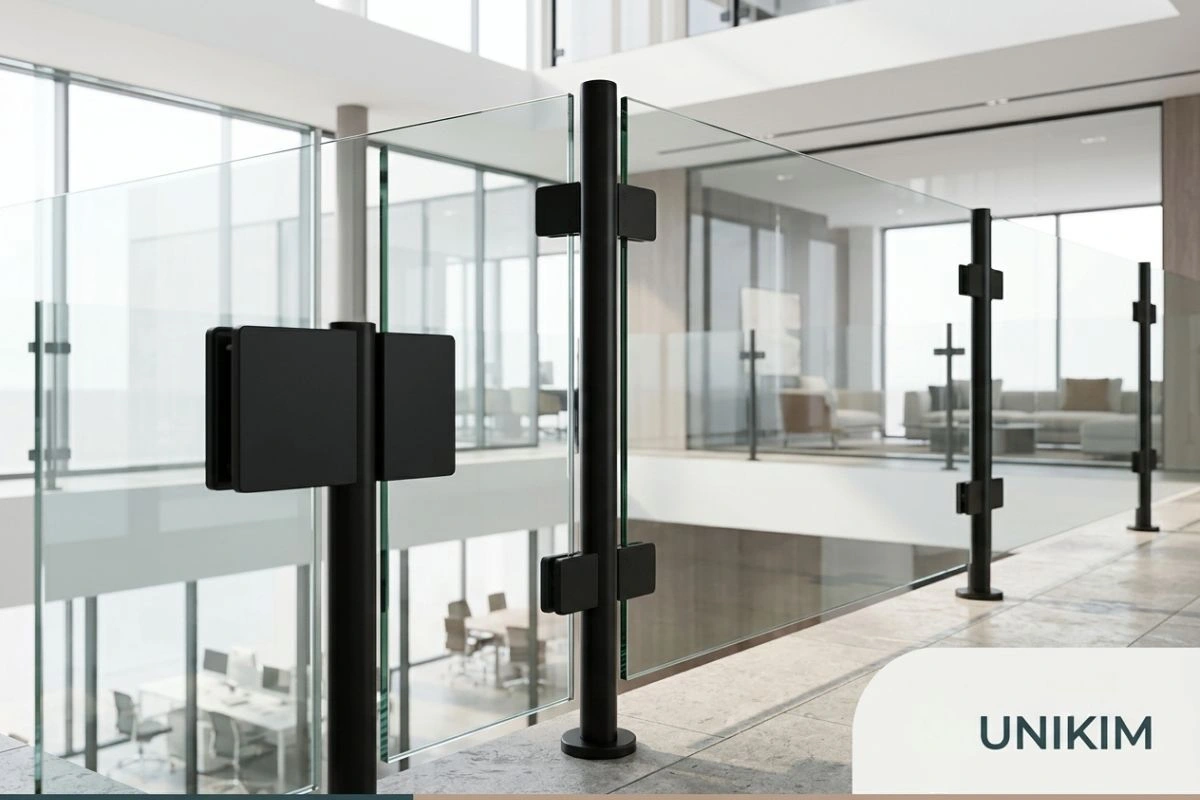

Glass balustrades on stairs, balconies, terraces and mezzanines with black handrails or posts; hotels, offices, shops and other commercial projects; outdoor railings with a security pin, in AISI 316 near the coast or pools.
Installation notes
- Glass panel height in the catalogue test set-up: 800–1,000 mm; minimum panel width 500 mm.
- Gap from handrail to top of glass, and from floor to bottom of glass: 10–50 mm (up to 120 mm with edge protection).
- Fit the clamps 100–150 mm from the top and bottom edges of the panel.
- Use the rubber insert that matches your exact glass thickness – see glass clamp rubber inserts.
Ordering tips
For coastal and pool areas order AISI 316 (A4.2024.xx.B). The matching rubber inserts are A9.2024.10.R to A9.2024.18.R, one per glass thickness. Ask for black posts and handrail fittings in the same order for a consistent look.
Why order from UNIKIM
We manufacture railing hardware in our own factory in Ningbo and supply distributors, contractors and fabricators worldwide. OEM logos, custom finishes and mixed orders of matching clamps, posts and handrail fittings are available. Browse the full range of glass clamps.
Related products
- Heavy Duty Square Glass Clamp 70×55 mm
- Square Glass Clamp 55×55 mm
- Square Glass Clamp 55×55 mm with Baffle Plate
- Glass Clamp Rubber Inserts
FAQ
Which glass does the black square glass clamp fit?
Single glass 10 or 12 mm and laminated glass 10.76, 12.76, 15.76 or 17.52 mm, each with its matching rubber insert.
What panel width can it hold?
The catalogue gives 500–1,600 mm, depending on glass type, wind load and the number of clamps.
Can it be used outdoors?
Yes. The catalogue lists MOD 2024 for outdoor use with a security pin (flat, Ø48.3 and Ø50.8 mm versions). Choose AISI 316 near the sea or pools.
Is the black clamp available in AISI 316?
Yes. Both grades are available: A2.2024.xx.B (AISI 304) and A4.2024.xx.B (AISI 316).
Need a price? Request a quotation with the model number, quantity, grade and finish.
