90° Glass-to-Glass Balcony Railing Clamp for 10/12 mm Glass – overview

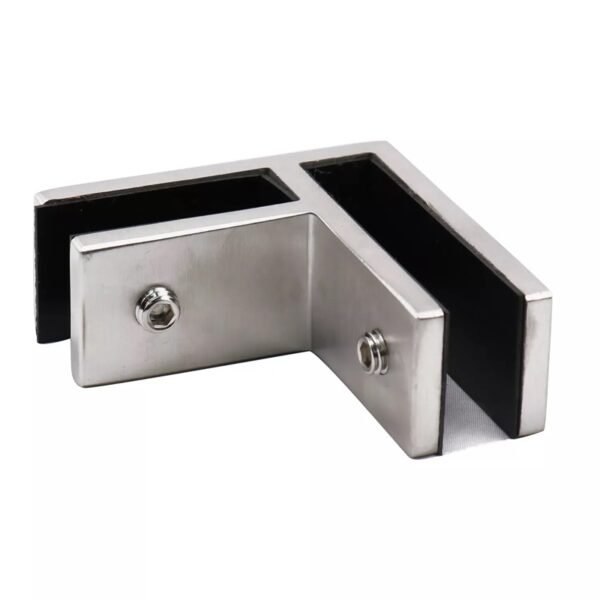

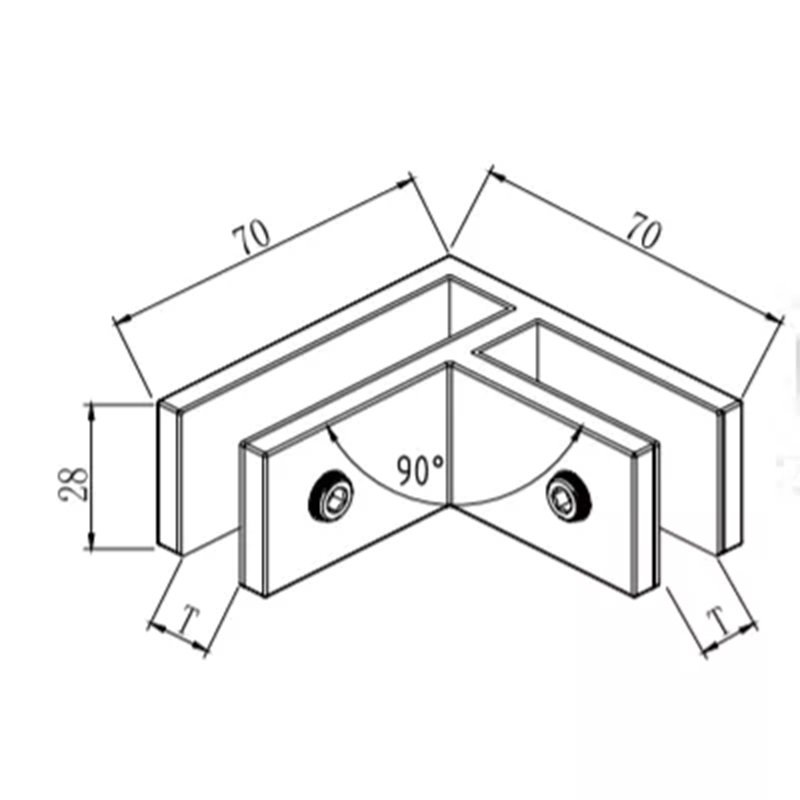

The 90° Glass-to-Glass Balcony Railing Clamp (MOD 2055) joins two glass panels at a right angle, so a glass balcony railing can turn a corner without a post. The catalogue drawing shows two 70 mm legs at 90°.
MOD 2055 is listed on page 48 of the 2024 catalogue together with the 180° connector MOD 2054 and the wall-to-glass connector MOD 2056. It takes 10 mm or 12 mm glass and comes in brushed stainless steel or black.
UNIKIM makes it in its own factory in Ningbo, China, in AISI 304 for dry indoor areas or AISI 316 for humid, pool and coastal locations. See 304 vs 316 stainless steel if you are not sure which grade to choose.
Specifications
| Model | MOD 2055 (catalogue p. 48) |
| Art. No. | A2.2055.00.S (AISI 304) / A4.2055.00.S (AISI 316) |
| Angle | 90°, glass to glass |
| Legs | 2 × 70 mm (catalogue drawing) |
| Glass thickness | 10 or 12 mm |
| Material | AISI 304 (A2) / AISI 316 (A4) stainless steel |
| Finishes | Brushed stainless steel or black |
Applications
Corners of glass balcony railings, terraces and roof decks; stair landings and mezzanines; glass partitions and shower screens with a 90° corner. Use AISI 316 for balconies near the sea or pools.
Installation notes
- Use at least two connectors per joint, near the top and bottom of the panels.
- Order the version for your exact glass thickness: 10 mm or 12 mm.
- Check panel size and loads against your local building rules before installation.
Which connector do I need?
The connectors on catalogue page 48 cover three joints. Choose by the joint and the glass thickness (10 or 12 mm):
| Model | Product | Joint |
|---|---|---|
| MOD 2054 | 180° Glass-to-Glass Connector Clamp | 180° – two panels in line |
| MOD 2055 | 90° Glass-to-Glass Balcony Railing Clamp | 90° – two panels at a corner |
| MOD 2056 | 90° Wall-to-Glass Connector Clamp | 90° – panel to wall, floor or ceiling |
For 6–12.76 mm glass corners there is also the 90° Glass-to-Glass Corner Clamp (MOD 2051).
Why order from UNIKIM
We manufacture railing hardware in our own factory in Ningbo and supply distributors, contractors and fabricators worldwide. OEM logos, custom finishes and mixed orders of matching clamps, posts and handrail fittings are available. Browse the full range of glass clamps.
Related products
- 90° Glass-to-Glass Corner Clamp
- 180° Glass-to-Glass Connector Clamp
- 90° Wall-to-Glass Connector Clamp
- Glass Clamp Rubber Inserts
FAQ
Which balcony railing clamp do I need for a corner?
For a 90° corner between two 10 or 12 mm glass panels use MOD 2055. For 6–12.76 mm glass use the corner clamp MOD 2051.
Which glass thickness fits?
10 mm and 12 mm glass, as listed in the catalogue.
Does it need a post?
No. It joins the two panels directly at the corner.
AISI 304 or 316 for a balcony?
Use AISI 316 (A4.2055.00.S) for outdoor balconies, especially near the coast or pools. AISI 304 is fine for dry indoor areas.
Need a price? Request a quotation with the model number, quantity, grade and finish.
