Glass Railing Standoff Hardware, Pin Type with M10 × 300 mm Rod – overview

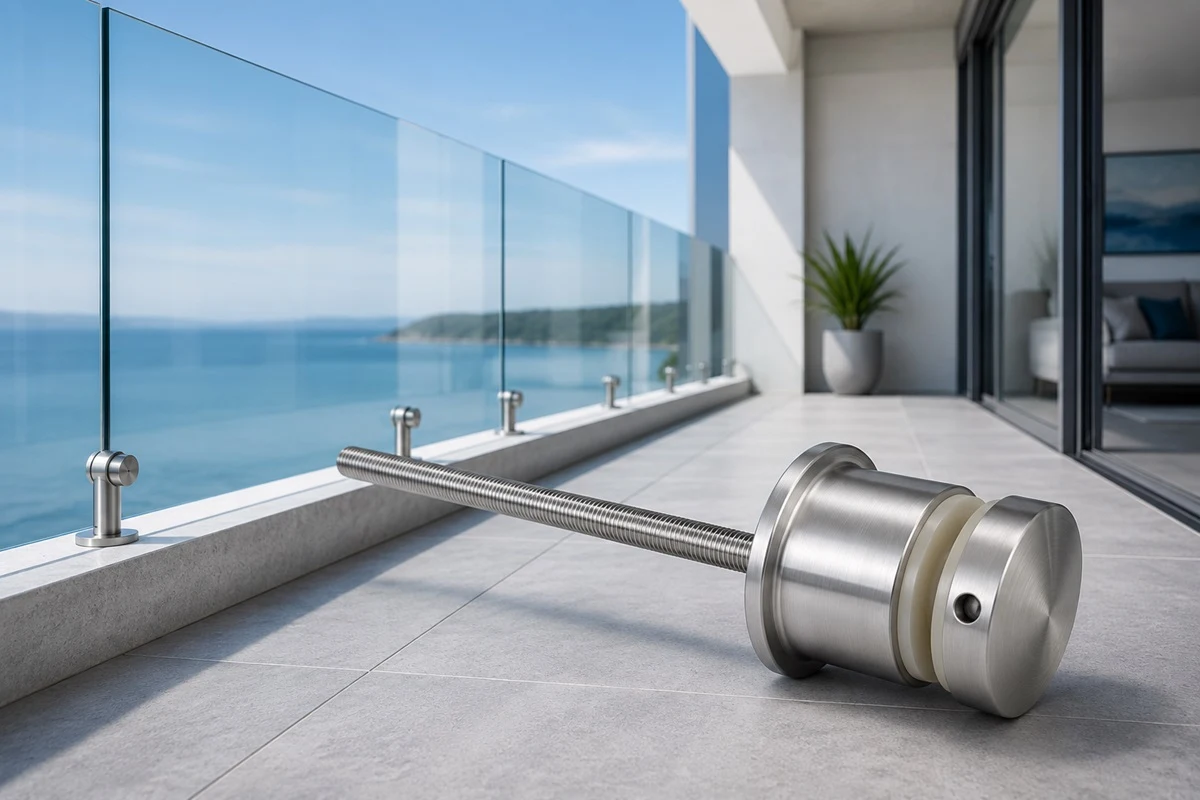

The Glass Railing Standoff Hardware, Pin Type with M10 × 300 mm Rod (MOD 2700) is a pin-type glass standoff with a Ø50 mm head, Ø60 mm base, 38 mm body and a long M10 × 300 mm threaded rod. The rod is set deep in concrete with a chemical anchor for a very strong fixing.
MOD 2700 is listed on page 23 of the UNIKIM 2024 catalogue. It belongs to our range of glass standoffs for frameless glass railings and balustrades.
UNIKIM makes it in its own factory in Ningbo, China. Choose AISI 304 for dry indoor areas and AISI 316 for humid, pool and coastal locations – see 304 vs 316 stainless steel.
Specifications
| Model | MOD 2700 (catalogue p. 23) |
| Type | Pin-type glass standoff with long threaded rod |
| Head / base | Ø50 mm head · Ø60 mm base |
| Body length | 38 mm |
| Threaded rod | M10 × 300 mm |
| Glass thickness | 8–18 mm (tempered or laminated) |
| Material | AISI 304 stainless steel (A2), brushed (S); AISI 316 (A4) on request |
Versions and article numbers
| Art. No. (AISI 304, brushed) | Head / base | Rod |
|---|---|---|
| A2.2700.00.S | Ø50 / Ø60 mm | M10 × 300 mm |
For AISI 316 replace A2 with A4.
Applications
Concrete slab edges, balconies and stairs where a deep chemical anchor is required, and refurbishments over render or insulation.
Installation notes
- Drill the glass with the hole size shown in the catalogue for this model, and always use tempered or laminated safety glass.
- Fix the standoff with an anchor that suits the base: chemical anchor in concrete, through-bolt in steel, or the matching screw in timber.
- Keep the rubber or PVC washers between the glass and the metal; steel must never touch the glass directly.
- The number of standoffs per panel and the edge distances depend on the glass size and the load – ask an engineer for public or commercial projects.
Why order from UNIKIM
We manufacture railing hardware in our own factory in Ningbo and supply distributors, contractors and fabricators worldwide. Standoffs, spigots, clamps and handrail parts can be shipped together, with OEM packing on request. Browse all glass standoffs.
Related products
- Adjustable Glass Railing Standoff (MOD 2920)
- Edge Glass Standoff Ø48 mm (MOD 2900)
- Stainless Steel Standoff Ø50 × 30 mm (MOD 2330)
- Square Glass Standoff, Double (MOD 2922)
- Heavy Duty Glass Standoff Ø70 × 30 mm (MOD 2530)
FAQ
What is a glass standoff?
A round or square stainless steel fitting that bolts through the glass and holds it a set distance from the wall, slab or post.
Which glass thickness does MOD 2700 fit?
8–18 mm (tempered or laminated).
Is MOD 2700 available in AISI 316?
Yes. AISI 316 (article prefix A4) is recommended for pools, coastal and outdoor projects.
Can I order samples or OEM packing?
Yes – contact us with the model, size and quantity.
Need a price? Request a quotation with the model number, size, quantity and finish.
