Slot Tube Handrail System for Glass Balustrades – overview
A slot tube handrail system puts a round stainless steel handrail directly on the top edge of the glass. The tube has a slot underneath; a rubber strip in the slot grips the glass, and fittings join, turn and finish the handrail – no posts are needed along the run.
The UNIKIM system (catalogue pages 12–17) has the slot tube MOD 0300 in Ø42.4, Ø48.3 and Ø60.3 mm, nine matching fittings and rubber strips for glass from 8 to 31.52 mm. Every part below has its own product page with drawing and article numbers.
UNIKIM makes it in its own factory in Ningbo, China. Choose AISI 304 for dry indoor areas and AISI 316 for humid, pool and coastal locations – see 304 vs 316 stainless steel.
Specifications
| Tube | MOD 0300 – Ø42.4, Ø48.3, Ø60.3 mm, 1.5 mm wall |
| Fittings | MOD 1100–1172, each in the three tube sizes |
| Rubber | MOD 0842 (Ø42.4), 0848 (Ø48.3), 0860 (Ø60.3) – by glass thickness |
| Glass | 8 to 31.52 mm toughened or laminated |
| Material | AISI 304 stainless steel (A2), brushed (S); AISI 316 (A4) on request |

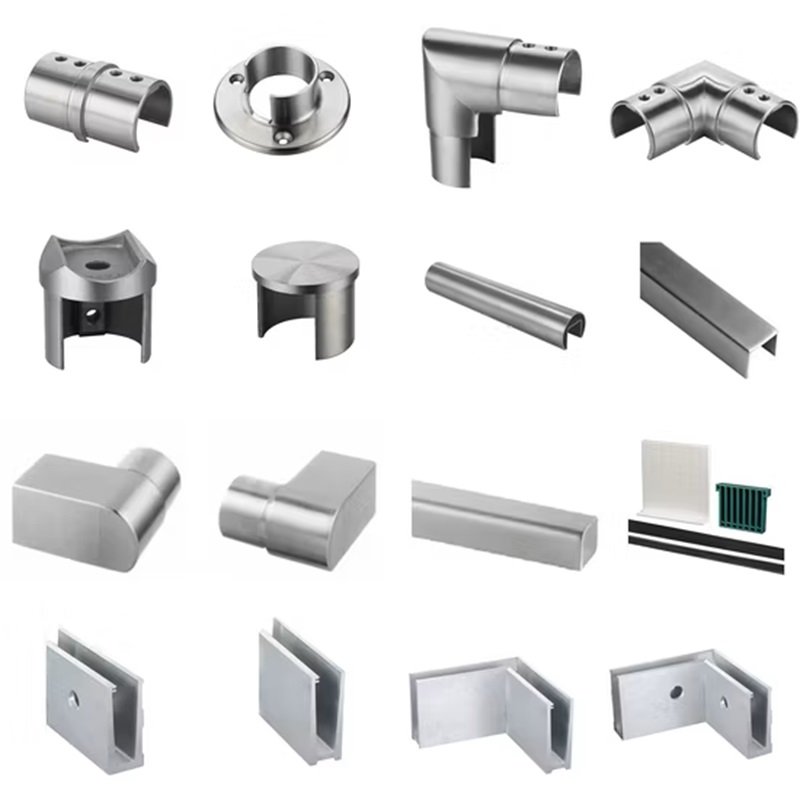

All parts of the system
| Model | Part | Use |
|---|---|---|
| MOD 0300 | Round Slot Tube Handrail (MOD 0300) | Round slot tube Ø42.4 / 48.3 / 60.3 mm |
| MOD 1100 | Slot Tube End Cap (MOD 1100) | Closes the tube end |
| MOD 1110 | Slot Tube Post Connector (MOD 1110) | Tube on top of a post |
| MOD 1120 | Slot Tube Vertical Elbow 90° (MOD 1120) | Turns the tube down 90° |
| MOD 1130 | Slot Tube Horizontal Corner 90° (MOD 1130) | 90° corner in plan |
| MOD 1140 | Slot Tube Wall Flange (MOD 1140) | Tube end to wall |
| MOD 1150 | Slot Tube Straight Connector (MOD 1150) | Joins two tube lengths |
| MOD 1160 | Slot Tube Adjustable Joint, Downward (MOD 1160) | Stair angle, downward |
| MOD 1170 | Slot Tube Adjustable Joint, Upward (MOD 1170) | Stair angle, upward |
| MOD 1171 / 1172 | Slot Tube Wall End Fitting (MOD 1171) / Slot Tube Wall End Fitting (MOD 1172) | Square wall end |
| MOD 0842 / 0848 / 0860 | Slot Tube Rubber Strip (MOD 0842 / 0848 / 0860) | Glass rubber, 8–31.52 mm |
| MOD 0301 / 0302 | U Cap Rail (MOD 0301) / Cap Rail Corner 90° (MOD 0302) | Square U cap rail and corner |
Applications
Frameless glass balustrades on stairs, balconies, terraces, mezzanines and atria; glass pool fences with a handrail; shops, offices and hotels that need a continuous, comfortable handrail on glass.
Installation notes
- Install and align the glass first (spigots, base shoe or clamps).
- Fit the rubber strip for your glass thickness and press the tube onto the glass.
- Join lengths with MOD 1150 and finish ends and corners with the matching fittings.
- Tell us the run lengths, corners and glass build-up – we prepare the full parts list.
Which tube size?
Ø42.4 mm is the most used handrail size; Ø48.3 mm gives a fuller grip; Ø60.3 mm suits thick laminated glass and large public projects. All fittings and rubber come in the same three sizes.
Why order from UNIKIM
We manufacture railing hardware in our own factory in Ningbo and supply distributors, contractors and fabricators worldwide. Mixed orders of spigots, slot tube, fittings and rubber can be shipped together, with OEM packing on request. Browse all slot tube handrail parts.
Related products
- Round Slot Tube Handrail (MOD 0300)
- Slot Tube Straight Connector (MOD 1150)
- Slot Tube End Cap (MOD 1100)
- Slot Tube Rubber Strip (MOD 0842 / 0848 / 0860)
FAQ
What is a slot tube handrail system?
A handrail system where a round stainless steel tube with a slot sits on the top edge of the glass, with fittings for ends, corners and joints.
Which sizes are available?
Ø42.4, Ø48.3 and Ø60.3 mm tube, each with matching fittings and rubber.
Which glass thickness can I use?
8 to 31.52 mm, with the rubber strip chosen for your glass.
Can you supply a complete kit?
Yes – send us the layout and we supply tube, fittings and rubber in one shipment.
