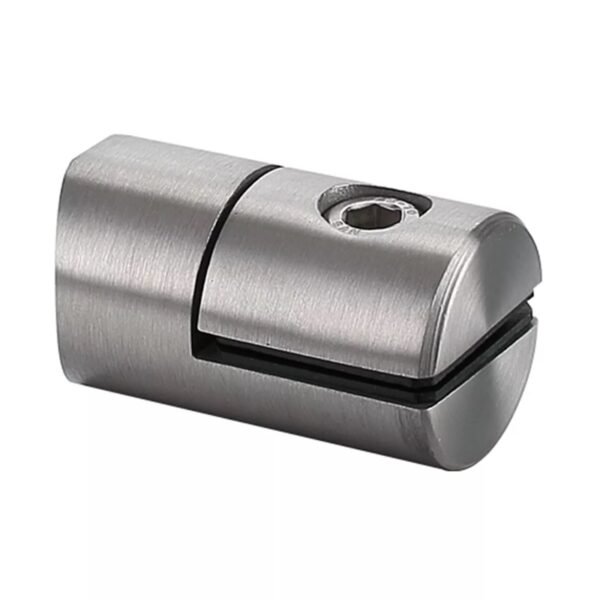

Round Glass Holder Clamp OD 25 mm – overview
The Round Glass Holder Clamp OD 25 mm (MOD 2000) is a compact, cylindrical glass holder clamp that fixes an infill panel to a railing post, a wall or a round handrail tube. It has a single screw fixing and is the smallest round holder in the UNIKIM range.
It is listed on page 46 of the UNIKIM 2024 catalogue together with the larger MOD 2001 (OD 32 mm). Because it is small, it is chosen where a light, minimal look matters – for example infill panels between posts on stairs and landings.
UNIKIM makes it in its own factory in Ningbo, China, in AISI 304 for dry indoor areas or AISI 316 for humid, pool and coastal locations. See 304 vs 316 stainless steel if you are not sure which grade to choose.
Specifications
| Model | MOD 2000 (catalogue p. 46) |
| Type | Round glass holder clamp, single screw fixing |
| Outer diameter | 25 mm |

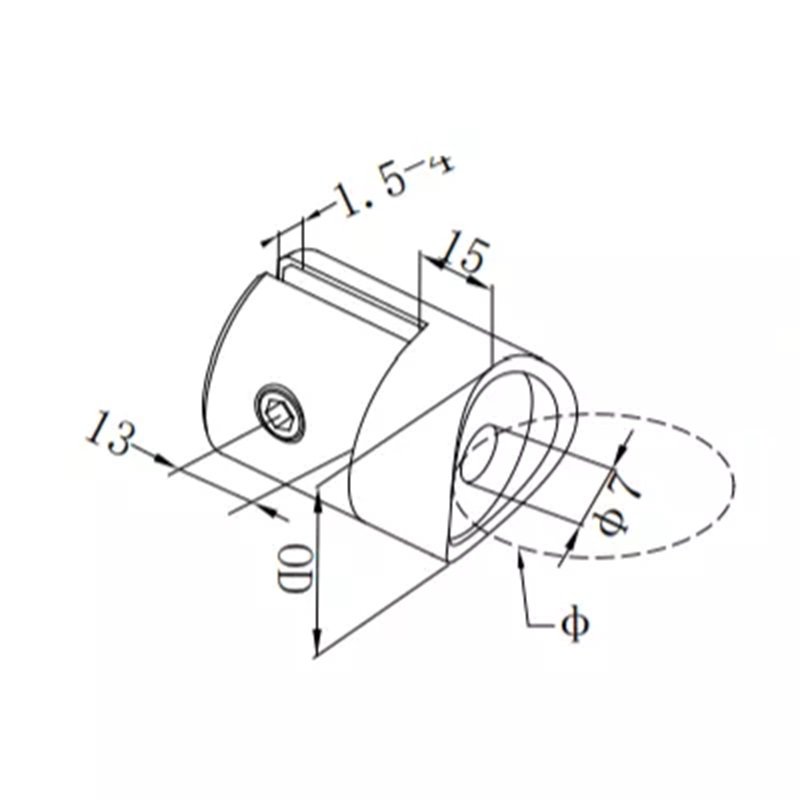

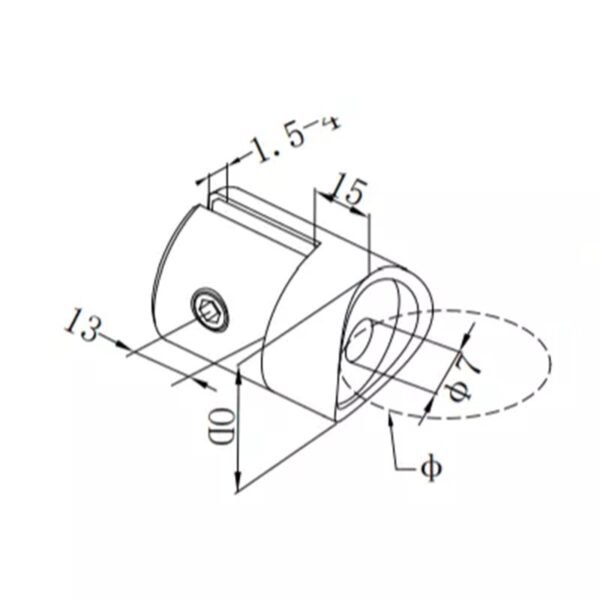

| Slot | 1.5–4 mm (catalogue drawing – confirm your panel thickness with us) |
| Mounting | Flat back, or curved back for Ø33.7, 38.1, 42.4, 48.3, 50.8 mm tubes |
| Material | AISI 304 (A2) / AISI 316 (A4) stainless steel |
| Finishes | Brushed (satin), polished, matte black, white, raw |
Versions and article numbers
| Art. No. (AISI 304) | Back / mounting |
|---|---|
| A2.2000.00.S | Flat – walls, flat or square posts |
| A2.2000.33.S | Round tube Ø33.7 mm |
| A2.2000.38.S | Round tube Ø38.1 mm |
| A2.2000.42.S | Round tube Ø42.4 mm |
| A2.2000.48.S | Round tube Ø48.3 mm |
| A2.2000.50.S | Round tube Ø50.8 mm |
For AISI 316 replace A2 with A4. For the finish replace the last letter: S brushed, M polished, B black, W white, R raw.
Applications
Infill panels between stainless steel posts on stairs, landings, balconies and mezzanines; small glass or sheet panels in shop fittings and display railings; renovation projects where a slim round holder replaces larger clamps.
Installation notes
- Use the flat version on walls and square posts; for round posts order the back that matches the tube diameter.
- Fit at least two holders on each side of a panel, near the top and bottom edges.
- Tighten the screw evenly so the panel is held without stress points.
MOD 2000 or MOD 2001?
Choose MOD 2000 (OD 25 mm) for a slim look and lighter panels. Choose the Round Glass Holder Clamp OD 32 mm when you want a heavier-looking fitting with the same mounting options.
Why order from UNIKIM
We manufacture railing hardware in our own factory in Ningbo and supply distributors, contractors and fabricators worldwide. OEM logos, custom finishes and mixed orders of matching clamps, posts and handrail fittings are available. Browse the full range of glass clamps.
Related products
- Round Glass Holder Clamp OD 32 mm
- Round Glass Clamp Ø60 mm, Double-Sided
- D-Shape Glass Clamp 50×40 mm
- Square Glass Clamp 45×45 mm
FAQ
What is a glass holder clamp?
A glass holder clamp is a small fitting that grips the edge of a glass or infill panel and fixes it to a post, wall or tube. MOD 2000 is a round version with a 25 mm outer diameter.
What is the difference between MOD 2000 and MOD 2001?
Both are round holder clamps with the same design and mounting options. MOD 2000 has a 25 mm outer diameter, MOD 2001 a 32 mm outer diameter.
Can it be fitted to a round post?
Yes. Order the version that matches the tube: 33.7, 38.1, 42.4, 48.3 or 50.8 mm. Use the flat version (A2.2000.00.S) on walls and square posts.
Which grade should I use outdoors?
Use AISI 316 (A4) for outdoor, pool and coastal projects, and AISI 304 (A2) for dry indoor areas.
Need a price? Request a quotation with the model number, quantity, grade and finish.
