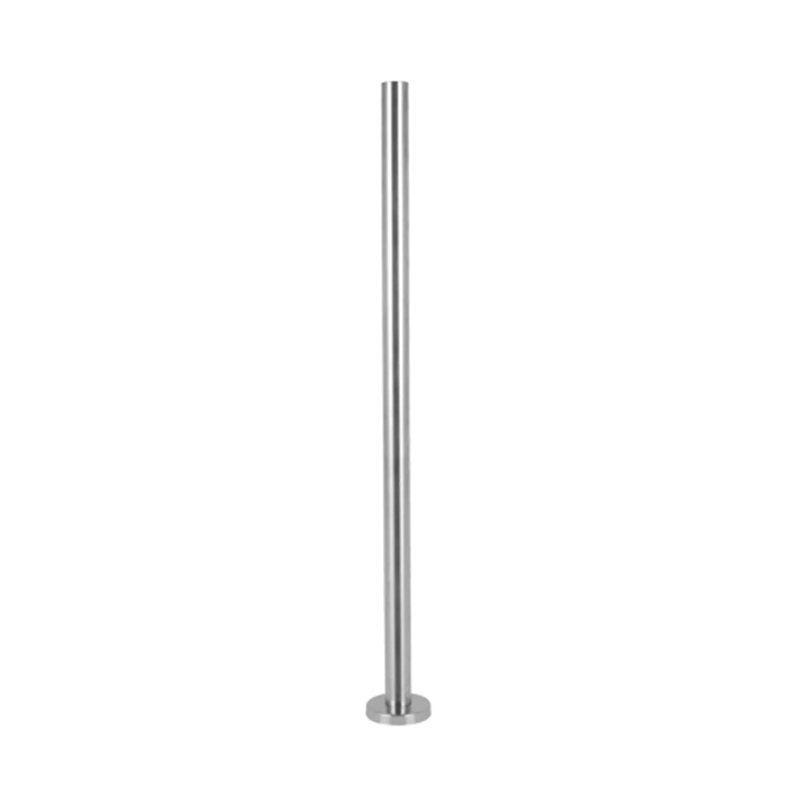

Stainless Steel Railing Post, Round, without Holes – Ø33.7 to 50.8 mm – overview
The Stainless Steel Railing Post, Round, without Holes – Ø33.7 to 50.8 mm (MOD 9000) is a round stainless steel railing post with a welded base plate and no drilled holes. Because it has no holes, you choose the fittings: glass clamps, handrail brackets, cable fittings or bar holders can be fixed where the project needs them.
MOD 9000 is listed on page 30 of the UNIKIM 2024 catalogue as part of our stainless steel railing posts. UNIKIM makes it in its own factory in Ningbo, China. Choose AISI 304 for dry indoor areas and AISI 316 for humid, pool and coastal locations – see 304 vs 316 stainless steel.
Specifications
| Model | MOD 9000 (catalogue p. 30) |
| Type | Round railing post – without drilled holes |
| Tube | Ø33.7 × 2.0, Ø38.1 × 1.5, Ø42.4 × 2.0, Ø48.3 × 2.0 or Ø50.8 × 1.5 mm |
| Holes | None – drill on site for the fittings you choose |
| Base | Welded base plate for surface fixing |
| Height | Made to order; common library heights include 823 and 976 mm |
| Material | AISI 304 stainless steel (A2), brushed (S); AISI 316 (A4) on request |
Versions and article numbers
| Art. No. (AISI 304, brushed) | Tube Ø × wall |
|---|---|
| A2.9000.33.S | Ø33.7 × 2.0 mm |
| A2.9000.38.S | Ø38.1 × 1.5 mm |
| A2.9000.42.S | Ø42.4 × 2.0 mm |
| A2.9000.48.S | Ø48.3 × 2.0 mm |
| A2.9000.50.S | Ø50.8 × 1.5 mm |
For AISI 316 replace A2 with A4. Tell us the finished height when you order; posts are cut and drilled to suit the glass and the floor build-up.
Applications
Balconies, decks and stairs where the fittings are drilled on site, handrail support posts, and custom railings with mixed infill.
Installation notes
- Fix the base plate with anchors that suit the floor: chemical anchors in concrete, through-bolts in steel, or structural screws into solid timber.
- Hide the anchors with a matching base cover from our bases and covers range.
- Mark and drill the fitting holes on site, then deburr them before fitting clamps or brackets.
- Check the guard height for your project: IBC Section 1015 requires at least 42 inches (1,067 mm) for required guards in most buildings; homes under the IRC use 36 inches.
Why order from UNIKIM
We have over 20 years of manufacturing experience and supply posts, clamps, handrails and fittings as one matched system to distributors, contractors and fabricators worldwide. Mixed orders can ship together, with OEM packing on request.
Related products
- Round Railing End Post (MOD 9010)
- Round 180° Middle Post (MOD 9020)
- Round 90° Corner Post (MOD 9030)
- Round 135° Post (MOD 9031)
- Square 180° Middle Post (MOD 9070)
FAQ
What tube sizes are available for MOD 9000?
Ø33.7 × 2.0, Ø38.1 × 1.5, Ø42.4 × 2.0, Ø48.3 × 2.0 and Ø50.8 × 1.5 mm.
How tall is the post?
Posts are made to the height you need. Send the finished guard height and the floor build-up with your order.
Can I drill the post on site?
Yes – the post has no holes, so you can fix clamps, brackets or other fittings where the design needs them.
Is MOD 9000 available in AISI 316?
Yes. AISI 316 (article prefix A4) is recommended for pools, coastal and outdoor projects.
Need a price? Request a quotation with the model number, tube size, height, quantity and finish.
